O-Ring
TYPE
PRODUCT
TYPE
DESCRIPTION
MATERIALS
TEMPERATURE [°C]
min. – max.
SPEED
[m/s]
PRESSURE
[MPA]
max.
DIMENSIONS
(mm)
TECH.
INFO

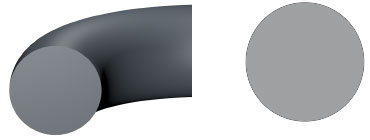

O-Ring
OR-10
-
NBR, FKM, EPDM, VMQ, HNBR, FFKM, FVMQ, FEPM, ACM, PTFE, PUR, CR, SBR, CSM, ECO, BR, IIR, IR, AU, EU, NR
-
-
-
-
ISO 3601-1 (DIN 3771-1), SMS 1586, JIS B 2401, AS 568, BS 1806, BS 4518, NF T47-501, R 0 to R 27, R 28 to R 88

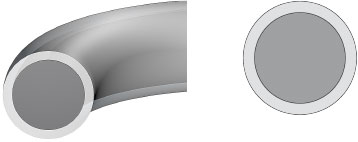

O-Ring
OR-11
FEP encapsulated
FKM / FEP encapsulated
-
-
-
-
VMQ / FEP encapsulated
-
-
-
-
-
O-Ring
OR-12
PTFE encapsulated
PTFE / Elastomer core
-
-
-
-
-
O-Ring
OR-13
made from O-Ring cord, glued
NBR, FKM, EPDM, VMQ
-
-
-
-
-

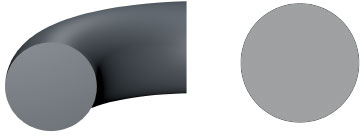

O-Ring
OR-14
made from O-Ring cord, vulcanised
NBR, FKM, EPDM, VMQ
-
-
-
-
-

On request available in other materials
